AIS 4620L

Features

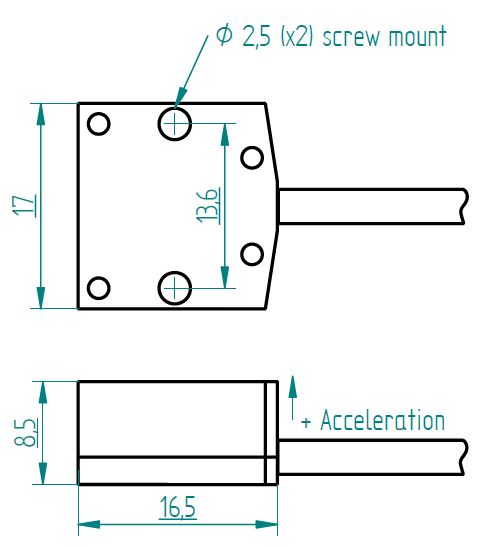

The Model AIS 4620L is an uniaxial capacitve accelerometer. The sensor is over a wide range from -55°C to +125°C temperature compensated and optional minimal exposure at +175°C recommended for maximum lifespan. The LowNoise performance is a drop in next generation with excellent 0G Bias, scale factor stability and temperature behavior. The housing with its mounting holes allows more possibilities. The AIS 4620L is adaptive for automotive and industrial applications. The signal is independent from the power supply between 9Vdc to 24Vdc optional up to 30Vdc. The flexible and rugged cable provides a simple mounting.

Applications

  • Vibration Monitoring
  • Automotive
  • Seismic Monitoring
  • Industrial Application
  • Machine Control

Service

  • Sinusoidal Calibration
  • Different cable length
  • Repairable
  • Signal Conditioning
  • Protective Circuit


Datenblatt zum direkten Download:
